10W 5-15KM Vhf/Uhf Handheld BAOFENG TR-818UV Digital Two Way Radio
Product Description
Double frequency, double channel display of the LCD
Built-in VOX function
Dual-watch operation
Respectively receive/transmit CTCSS/DCS code
Repeater shift direction set
Auto code search
Reverse frequency function
Voice scrambier (Optional)
Multi channel steps
Frequency deviation setting
Busy channel lock
Time-out-timer(TOT)
Channel, channel-frequency, channel-name display
Up/down scan function / Priority scan
Wide/narrow bandwidth
1750Hz call tone
Corss-band receiving/transmitting
200 channels
Channel name edit / Channel store
FM Radio(88-108MHz)
PC programmable
Main/sub channel display shift
Channel scan list additive
Technical Specification:
| General Specifications |
| Model NO. | BAOFENG UV-B2 PLUS baofeng 10w |
| Frequency Range | VHF136~174MHz & UHF400~520MHz |
| Channel NO. | 128CH |
| Power Output( H/L) | 7W |
| Channel step | 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/20KHz/25KHz |
| Channel Voltage | DC 7.4V |
| Battery | 3800mAh li-ion battery |
| Model of operation | Simplex or Semi-duplex |
| Frequency Stability | ±2.5ppm |
| Operated Temperature | -20ºC ~+60ºC |
| Antenna Impedance | 50Ω |
| Consumption in standby | 380mA |
| Transmitter |
| RF Power Output | 7W/1W |
| Type of modulation | FM |
| Maximum deviation(W/N) | ≤±5KHz / ≤±2.5KHz |
| Emission class(W/N) | 16KΦF3E/ 11KΦF3E |
| Spurious Emission | <-60dB |
| Receiver |
| Sensitivity(12Db SINAD) | ≤0.20μV |
| Intermodulation | ≥60dB |
| Audio output | 1000mW |
| Selectivity | 65 / 60dB |
· 1x baofeng walkie talkie
· 1x Li-Ion battery
· 1x Antenna
· 1x Belt Clip
· 1x User's Manual
· 1X charger
Packaging & Delivery
Selling Units:Single item
Single package size:20X16X6 cm
Single gross weight:0.520 kg
Package Type:carton box
Lead Time :
-
| Quantity(Pieces) | 1 - 100 | >100 |
| Est. Time(days) | 5 | To be negotiated |
Product Tags:
|
|

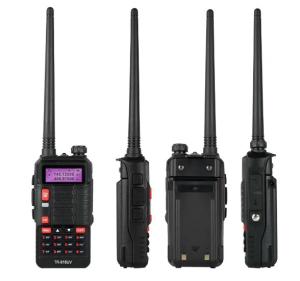

BAOFENG TR-818UV Handheld 10W 15KM Digital Two Way Radio Images
|
