UV-9R Portable Walkie Talkie 128CH

Name: UV9R Portable Walkie Talkie 128CH
Brand: baofeng
Price: 22.00 USD

China UV-9R Portable Walkie Talkie 128CH wholesale

Brand Name : baofeng

Model Number : UV-9R

Certification : CE FCC Rohs Certificate

Place of Origin : China

MOQ : 10pcs

Price : USD22.00/piece

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 50000pcs / year

Delivery Time : 3-8 days

Packaging Details : carton box

output power : 8W

Storage Channels : 128

Operating Voltage : DC 7.4V

type : handheld

talk range : 3-15KM

frequency range : VHF136~174MHz & UHF400~520MHz

Contact Now

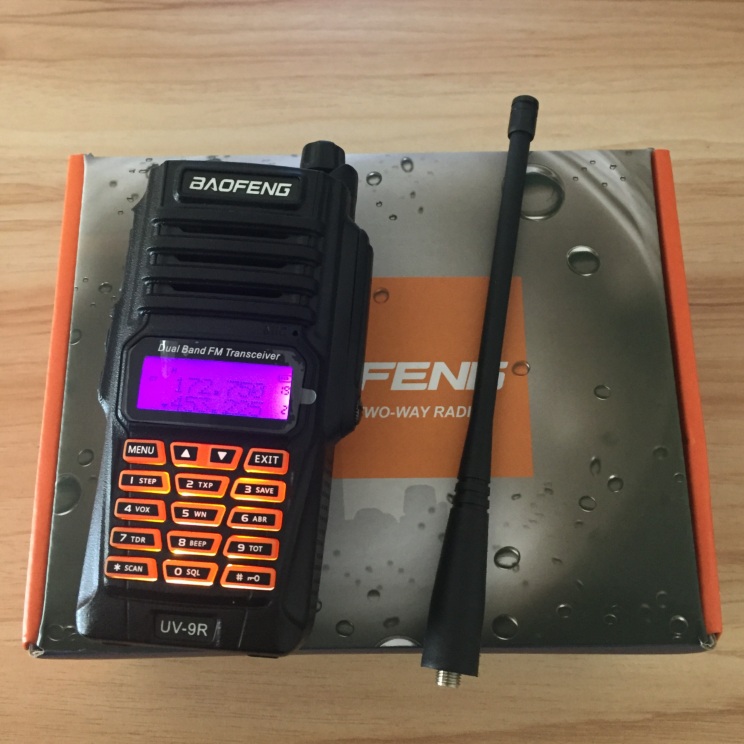

Baofeng UV-9R The transcevier is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

VHF/ UHF DUAL-BAND TWO WAY RADIO

Frequency Range: 136-174 / 400-520MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Output Power: 5Watts
128 Channels
50 CTCSS and 104 CDCSS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz
ROGER SET

Dual band, dual display, dual standby	A/B band independent operation
128 groups channels storage	Shortcut menu operation mode
VFO & Memory channels scan	Emergency Alarm
Tri-color background light selectable	0~9 grades VOX selectable
PTT & ANI ID	FM radio and 25 stations storage
Voice companding	CTCSS/DCS
	PC programmable
Wide/Narrow Band(25kHz/12.5kHz)	Transmitter time-out timer(TOT)
High/Low TX power selectable	Busy channel lock-out(BCLO)

Technical Specifications:

Item number	UV-9R
General
Frequency Range	65-108MHz(FM Receive only)
Frequency Range	136-174MHZ and 400-520HZ (TX/RX)
Channel No.	128
Frequency Stability	±2.5ppm
Antenna	High gain DualBand antenna
Antenna Impedance	50?
Operating Voltage	DC 7.4V
Mode of operation	Simple or semi-duplex
Dimension(W x H x D)	100 x 52 x 32 mm
Weight	250g(including battery, antenna)
Transmitter
Output power	8W
Modulation Mode	16k?F3E / 11k?F3E
Maximum deviation	<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation	<7?W
Adjacent Ch. power	?-65dB(Wide) / ?-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	?1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	<10%

Packing Content:

1x Baofeng UV-9R Dualband Radio 136-174MHz+400-520MHz
1x Dualband Antenna
1x 1800mAh Li-ion Battery
1x Charger with Adaptor fit your country
1x Belt clip
1x English User manual
1x Hand strip

UV-9R Portable Walkie Talkie 128CH
